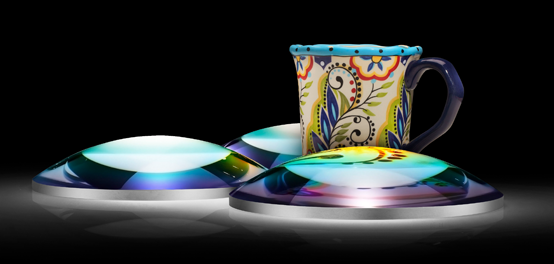

    Aspheric Lenses

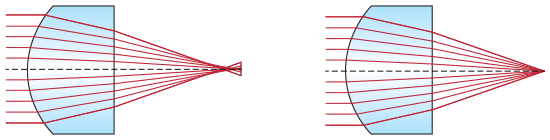

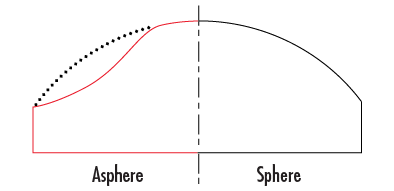

    Aspheric Lenses are used to eliminate spherical aberration in a range of applications, including bar code scanners, laser diode collimation, or OEM or R&D integration. Aspheric lenses utilize a single element design which helps minimize the number of lenses found in multi-lens optical assemblies. Said another way, unlike conventional lenses with a spherical front surface, aspheric lenses have a more complex front surface that gradually changes in curvature from the center of the lens out of the edge of the lens. This reduction in total element count not only helps decrease system size or weight, but also simplifies the assembly process. Integrating aspheres into an application such as focusing the output of a laser diode may not only decrease total cost, but may also outperform assemblies designed with traditional spherical optical lenses.

    CNC Polished
    • Applications Requring the Highest Precison Performance
    Infrared
    • Diffraction Limited Performance in the Infrared
    Precision Glass Molded
    • Small Diameter Lenses for Laser Collimation and Focusing
    Color Corrected
    • Performance Over a Broad Wavelength Range
    Condenser Lenses
    • Low Cost Alternative to Precision Aspheric Lenses
    Plastic Molded
    • Weight Sensitive Wearable Applications

    ×
