Edmund Optics® 120i Plan APO 无限远校正物镜

Machine Vision Systems

  • 1.1" Sensor Format Coverage
  • Up to 43% Shorter Compared to Other Systems
  • Color Corrected for Use with Machine Vision LEDs

Life Science Applications

  • Exceptional Image Flatness
  • Chromatic Abberation Correction (APO)
  • Enables Reduced Runtime with Large Field of View
Overview:

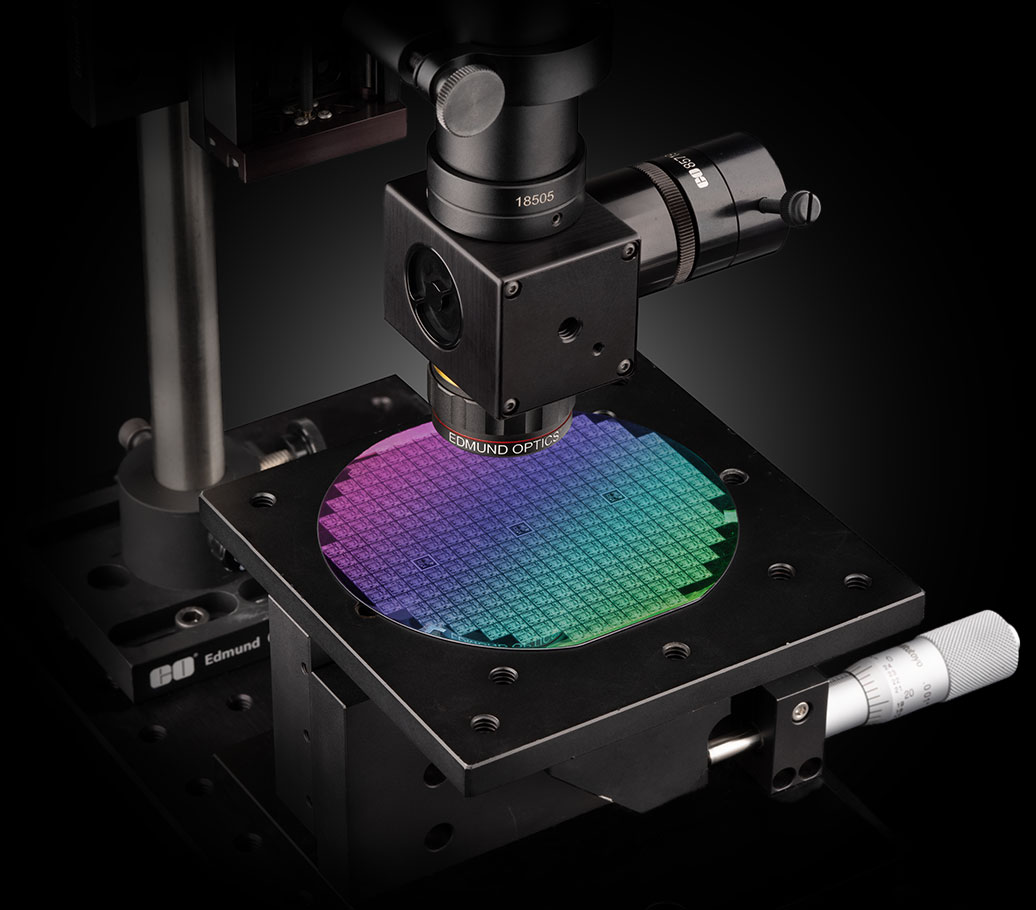

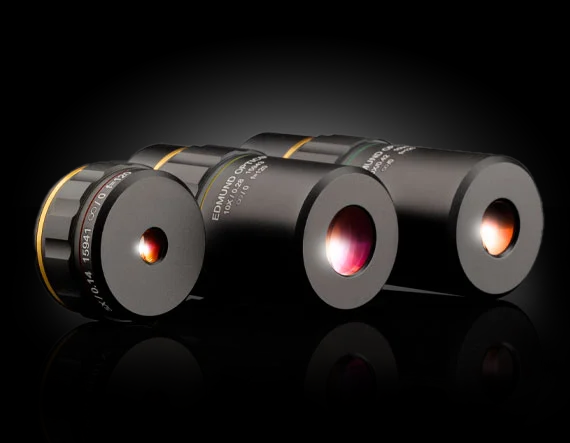

TECHSPEC® 120i Plan APO Infinity Corrected Objectives are infinite conjugate microscope objectives designed to reduce the overall weight and size of an imaging system while maintaining optical performance. These objectives allow for a reduction in overall system length, by eliminating the requirement for the objectives to be parfocal to each other. TECHSPEC® 120i Plan APO Infinity Corrected Objectives feature c-mount threading to provide easy integration into a wide range of machine vision and life science systems. These objectives are ideal for biomedical and machine vision applications such as microscopy, flow cytometry, pharmaceutical inspection, and assembly line or fault inspection.

Please accept marketing-cookies to watch this video.

Please accept marketing-cookies to watch this video.

Please accept marketing-cookies to watch this video.

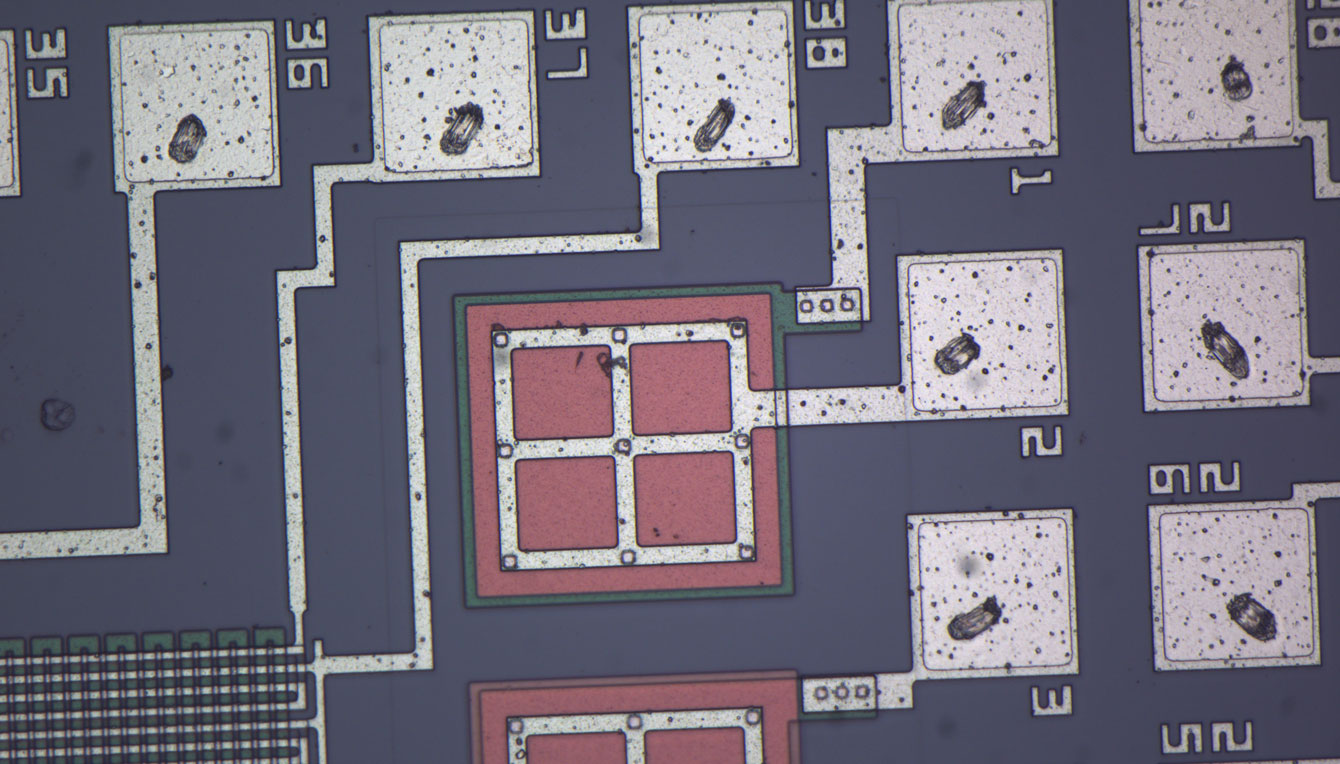

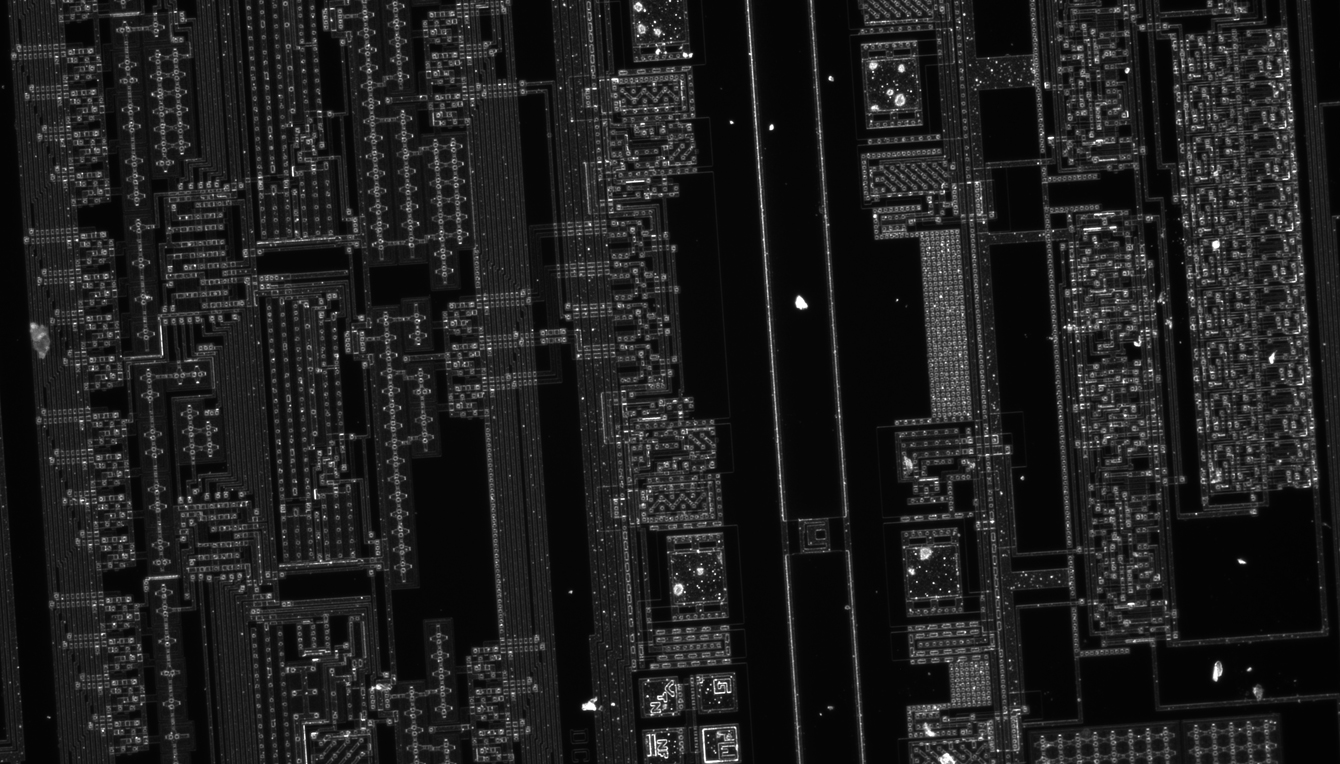

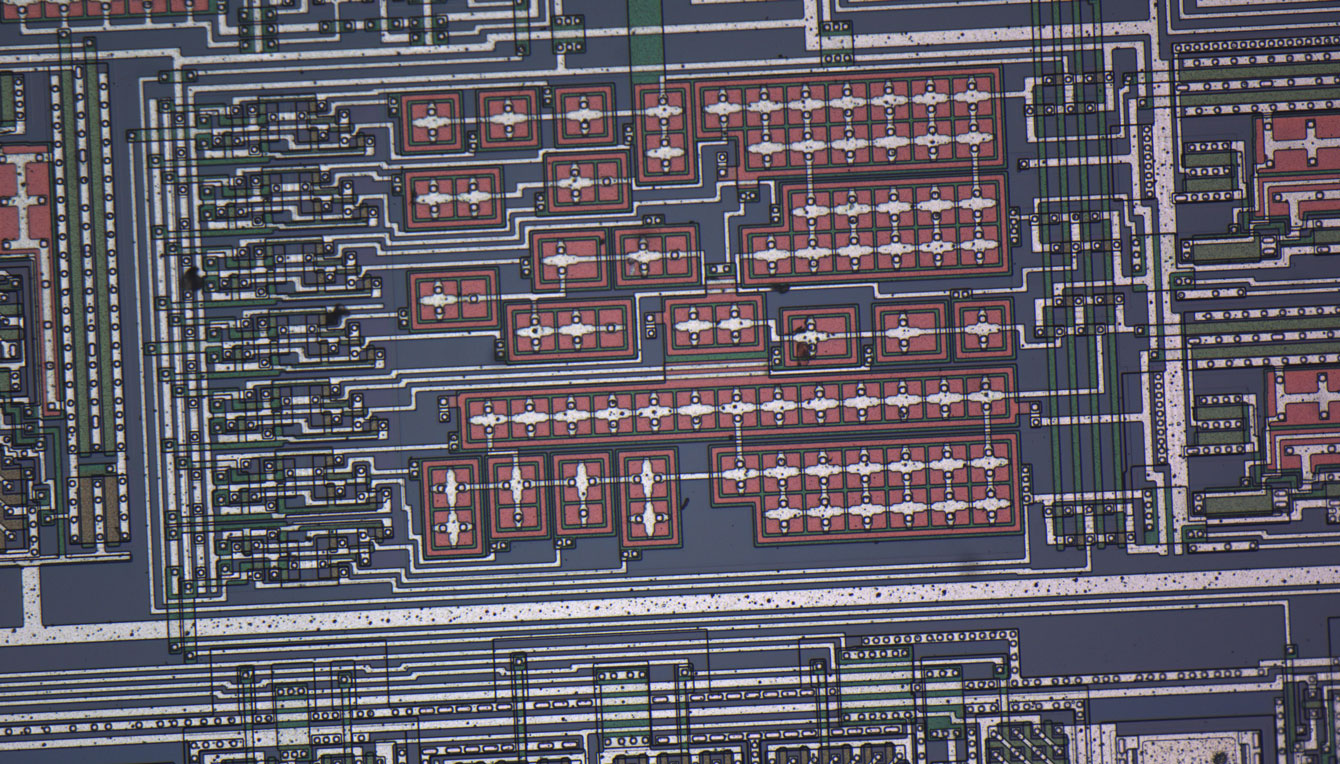

Gallery:
Configurations

Basic Digital Microscope System

C-Mount M29 x 0.75
M29 x 0.25 Dovetail

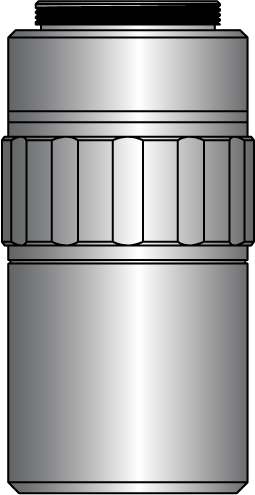

Figure 1: Basic Microscope System with TECHSPEC® 120i Plan APO Infinity Corrected Objectives

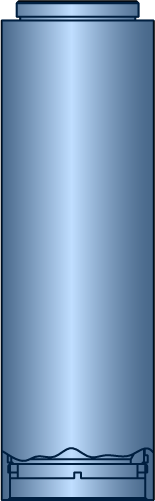

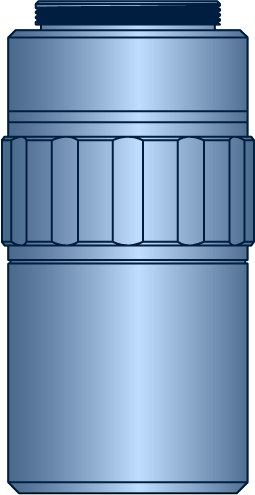

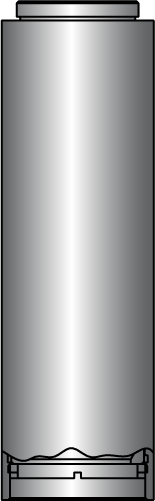

The minimum required components for a basic digital microscope system are a TECHSPEC® 120i Plan APO Infinity Corrected Objective, camera tube, tube lens, lens tube spacer, and an industrial C-Mount camera (Figure 1). Learn more about assembling a basic system in either a vertical or horizontal configuration here.

Fluorescence Microscope System

C-Mount M29 x 0.75
M29 x 0.25 Dovetail
Dovetail

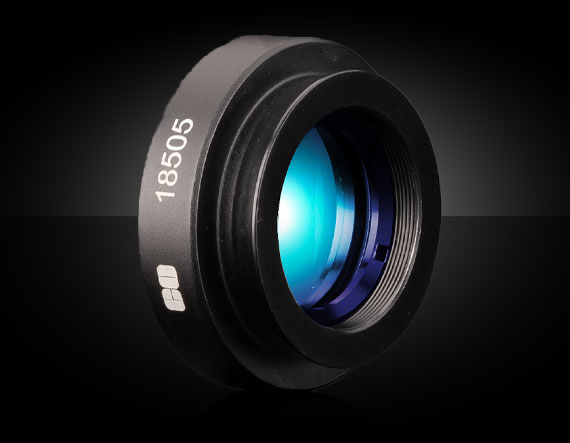

Filter Cube Filter Cube #18-508 Filter Cube * *Designed for use with Fluoresence Fiber Kits One Required
C-Mount
Figure 2: Fluorescence Microscopy System with TECHSPEC® 120i Plan APO Infinity Corrected Objectives

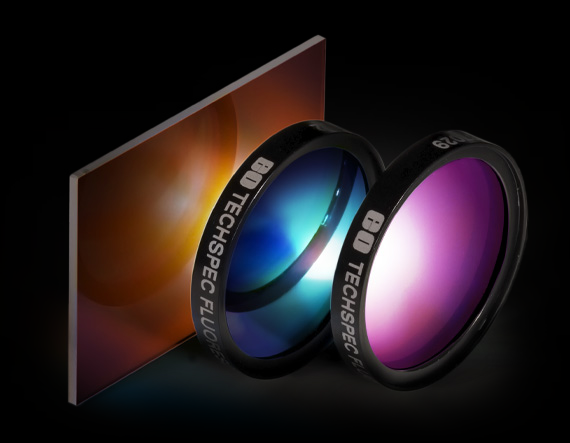

For life science systems requiring fluorescence imaging, TECHSPEC® Fluorescence Filter Sets can also be incorporated into the system with the available accessories. Learn more about assembling these fluorescence configurations here.

Technical Note: Why Numerical Aperture Does Not Define Performance

Numerical aperture (NA) is an important specification to define for a microscope objective because it describes the objective’s ability to gather light at a fixed working distance. The NA is often assumed to describe an objective’s resolving power; however, this is not an accurate assumption. The equation below is the first-order equation used to calculate NA. This equation is useful for understanding NA on-axis, but it does not consider field changes for off-axis performance. In addition, this equation does not consider tolerances during the manufacturing and assembly of microscope objectives that can impact the performance.

Equation

n: refractive index of imaging medium

θ: one-half of the objective’s opening angle

Figure 1 below demonstrates the off-axis performance of the 5X 120i Plan APO Infinity Corrected Objective compared to another 5X Plan APO infinity corrected objective from another manufacturer that has the same NA of 0.14. Performance off-axis is better with the 120i Objective in the corner of a 1.1” sensor, indicating that NA is not the defining factor for the performance of an objective.

Contrast Comparison using a USAF Resolution Test Target on a 1.1” Sensor

Figure 4. Contrast Comparison using a USAF Resolution Test Target on a 1.1” Sensor

a) Image with 5X 120i Plan APO Infinity Corrected Objective showing 20% contrast at 330 lp/mm

b) 5X Plan APO Infinity Corrected Objective from another manufacturer showing 10% contrast at 330 lp/mm

How to Assemble a 120i Microscope System

Learn how to assemble a microscope system using the award-winning Edmund Optics® 120i Plan APO Infinity Corrected Objectives

  Learn More


  • Application Notes


  • Webinars


Application Notes

Technical information and application examples including theoretical explanations, equations, graphical illustrations, and much more.

Assembling Compact Machine Vision Microscopy Systems with Edmund Optics® TECHSPEC® 120i Plan APO Infinity Corrected Objectives
Read

Understanding Microscopes and Objectives
Read

Using Tube Lenses with Infinity Corrected Objectives
Read

Optical Microscopy Application: Fluorescence
Read

Multiphoton Microscopy
Read

Confocal Microscopy
Read

Light Sheet Microscopy
Read

Webinars

The Fundamentals of Imaging with Microscope Objectives
Watch

機器視覺系統

  • 1.1"" 感應器格式涵蓋範圍
  • 與其他系統相比,時間縮短達 43%
  • 顏色校正可與機器視覺 LED 一起使用

生命科學應用

  • 卓越的影像平坦度
  • 色差校正 (APO)
  • 透過大視野縮短運行時間
概述:

TECHSPEC® 120i Plan APO 無限遠校正物鏡是無限遠共軛顯微鏡物鏡,旨在減少成像系統的整體重量和尺寸,同時保持光學性能。這些物鏡消除了物鏡彼此齊焦的要求,從而可以縮短整個系統的長度。TECHSPEC® 120i Plan APO 無限遠校正物鏡採用 C 介面螺紋,可輕鬆整合到各種機器視覺和生命科學系統中。這些物鏡非常適合生物醫學和機器視覺應用,例如顯微鏡、流式細胞儀、藥物檢查以及裝配線或故障檢查。

Please accept marketing-cookies to watch this video.

Please accept marketing-cookies to watch this video.

Please accept marketing-cookies to watch this video.

Gallery:
配置

Basic Digital Microscope System

C-Mount M29 x 0.75
M29 x 0.25 Dovetail
Figure 1: TECHSPEC® 120i Plan APO 无限远校正物镜基本數位顯微鏡系統

The minimum required components for a basic digital microscope system are a TECHSPEC® 120i Plan APO 无限远校正物镜, camera tube, tube lens, lens tube spacer, and an industrial C-Mount camera (Figure 1). Learn more about assembling a basic system in either a vertical or horizontal configuration here.

Fluorescence Microscope System

C-Mount M29 x 0.75
M29 x 0.25 Dovetail
Dovetail
Filter Cube Filter Cube #18-508 Filter Cube * *Designed for use with Fluoresence Fiber Kits One Required
C-Mount
Figure 2: Fluorescence Microscopy System with TECHSPEC® 120i Plan APO 无限远校正物镜

For life science systems requiring fluorescence imaging, TECHSPEC® Fluorescence Filter Sets can also be incorporated into the system with the available accessories. Learn more about assembling these fluorescence configurations here.

Technical Note: Why Numerical Aperture Does Not Define Performance

Numerical aperture (NA) is an important specification to define for a microscope objective because it describes the objective’s ability to gather light at a fixed working distance. The NA is often assumed to describe an objective’s resolving power; however, this is not an accurate assumption. The equation below is the first-order equation used to calculate NA. This equation is useful for understanding NA on-axis, but it does not consider field changes for off-axis performance. In addition, this equation does not consider tolerances during the manufacturing and assembly of microscope objectives that can impact the performance.

Equation

n: refractive index of imaging medium

θ: one-half of the objective’s opening angle

Figure 1 below demonstrates the off-axis performance of the 5X 120i Plan APO 无限远校正物镜 compared to another 5X Plan APO 无限远校正物镜 from another manufacturer that has the same NA of 0.14. Performance off-axis is better with the 120i Objective in the corner of a 1.1” sensor, indicating that NA is not the defining factor for the performance of an objective.

Contrast Comparison using a USAF Resolution Test Target on a 1.1” Sensor

Figure 4. Contrast Comparison using a USAF Resolution Test Target on a 1.1” Sensor

a) Image with 5X 120i Plan APO 无限远校正物镜 showing 20% contrast at 330 lp/mm

b) 5X Plan APO 无限远校正物镜 from another manufacturer showing 10% contrast at 330 lp/mm

How to Assemble a 120i Microscope System

Learn how to assemble a microscope system using the award-winning Edmund Optics® 120i Plan APO 无限远校正物镜

  Learn More


  • Application Notes


  • Webinars


Application Notes

Technical information and application examples including theoretical explanations, equations, graphical illustrations, and much more.

Assembling Compact Machine Vision Microscopy Systems with Edmund Optics® TECHSPEC® 120i Plan APO 无限远校正物镜
Read

Understanding Microscopes and Objectives
Read

Using Tube Lenses with 无限远校正物镜
Read

Optical Microscopy Application: Fluorescence
Read

Multiphoton Microscopy
Read

Confocal Microscopy
Read

Light Sheet Microscopy
Read

Webinars

The Fundamentals of Imaging with Microscope Objectives
Watch

×
