系列ID 系列ID用於識別產品系列介紹，使得用戶利用搜索功能就能快速訪問介紹頁面。 #4703

Teledyne Imaging Photometrics Iris PCIe 相機

#90-391 Photometrics Iris 15 PCIe Camera

低倍率下依然具備高解析度成像能力
4.25µm 小畫素，涵蓋大陣列
高級觸發功能
適用於高靈敏度顯微成像的科學相機

Teledyne Imaging Photometrics Iris PCIe 相機搭載高解析度 sCMOS 傳感器，配備 4.25 µm 小畫素與大尺寸傳感器格式。透過在大視場範圍內最大化空間取樣，該技術即便在低放大倍率下也能實現精確成像，同時確保不犧牲靈敏度或幀率。這款相機另配備可程式化的掃描與讀取模式，可精確控制曝光時間與傳感器讀取方向。此外，其先進的觸發功能可與外部設備實現無縫同步，適用於高速或時間敏感型成像應用。Teledyne Imaging Photometrics Iris PCIe 相機提供 C-Mount 和 F-Mount 配置，非常適合光片顯微鏡、活細胞螢光成像以及大樣本的高解析度成像。這款相機搭載 Teledyne 專有設計的軟體平臺 Beacon 與 PVCAM，可優化相機效能並提升系統整合便利性。

產品
產品概覽
Accessories
相關產品
資源

產品

產品概覽

High Resolution

The small, 4.25 µm pixels provide highly detailed images across the imaging plane, which allows for the highest resolution when using lower magnification objectives.

Large Field of View

The larger format 25 mm sensor of the Iris 15 is designed to increase throughput, maximize the amount of data captured and take full advantage of new, larger field of view microscopes.

Compact Form Factor

The Iris 9 (76 x 76 x 88 mm) and Iris 15 (78 x 78 x 108 mm) cameras feature optimized cooling for the size, ideal for integration into new or existing configurations.

Advanced Triggering

Programmable Scan Mode provides increased control over the rolling shutter exposure and read-out functionality of CMOS sensors by providing access to the sensor timing settings to allow optimization around applications that require control over the line time.

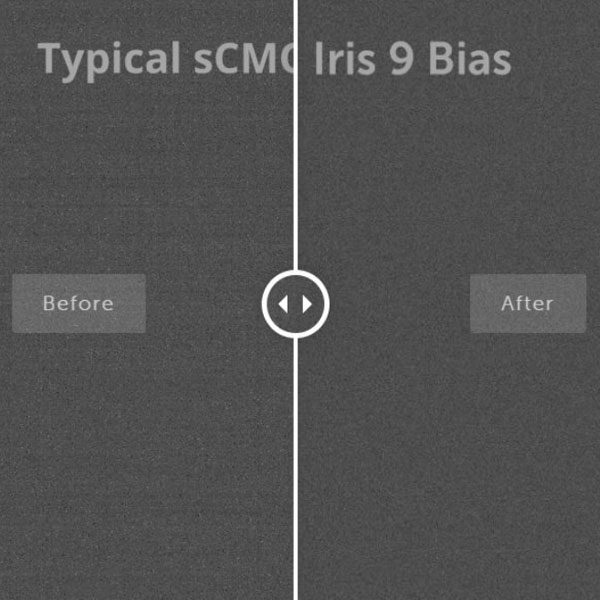

Superior Background Quality

The Iris Family feature Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that they deliver clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.
