Name: 10mm, Uncoated, N-BK7 Right Angle Prism
Brand: TECHSPEC
SKU: 32-330
Price: NT$1,750

Coating:

Uncoated

N-BK7

Surface Quality:

60-40

Type:

Right Angle Prism

Dimensional Tolerance (mm):

±0.1

Angle Tolerance (arcmin):

±2

Bevel:

Protective bevel as needed

Length of Hypotenuse (mm):

14.10

Length of Legs (mm):

10.00

Image Orientation:

Left-Handed

Ray Deviation (°):

90

Wavelength Range (nm):

350 - 2200

Power (fringes) @ 632.8nm:

1.25

Irregularity (fringes) @ 632.8nm:

0.50

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

View

Reach 240:

Compliant

產品系列說明

Ray Deviation of 90°
Left Handed Image
Available with Aluminized and AR Coated Faces
Additional Right Angle Prism Options Available

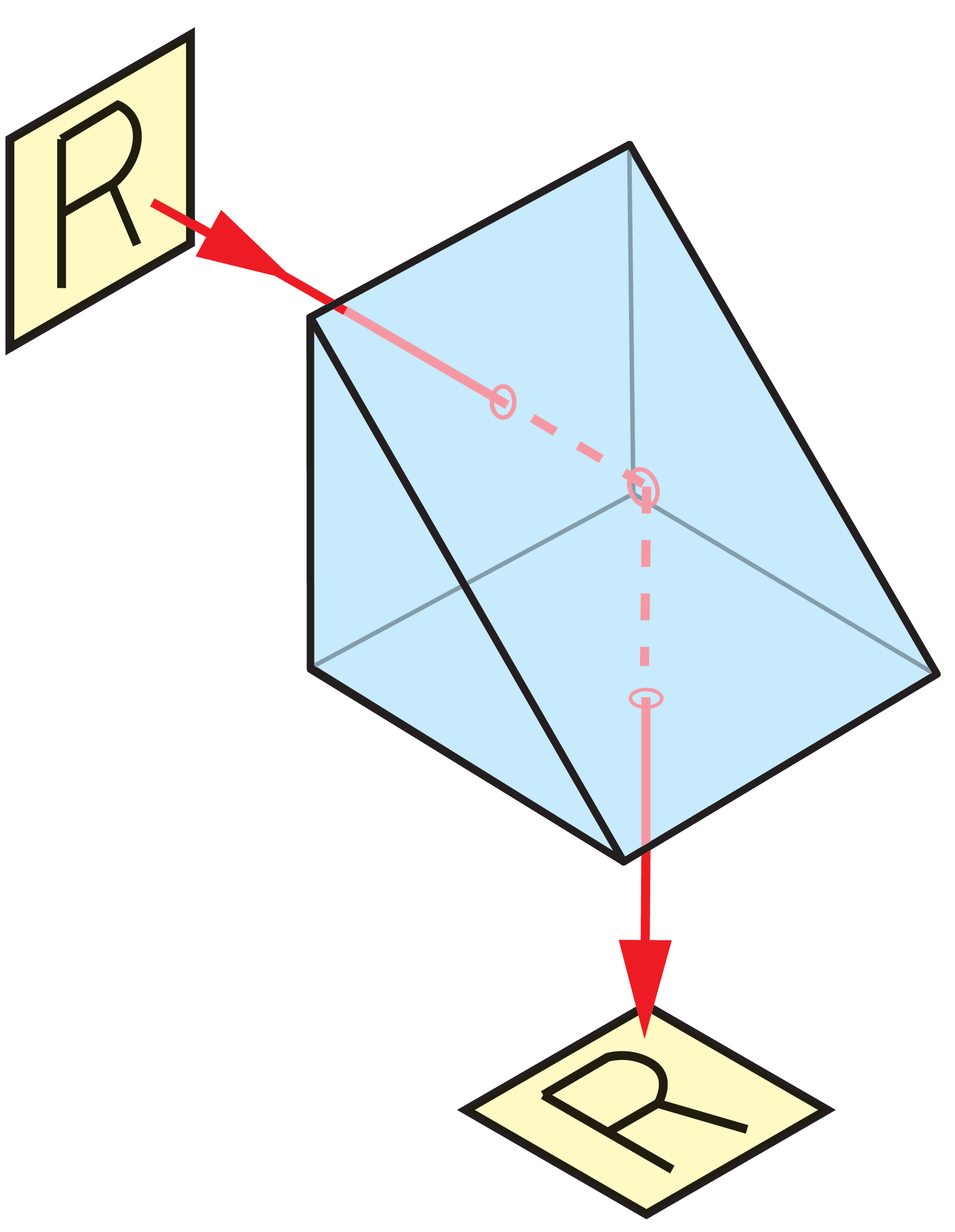

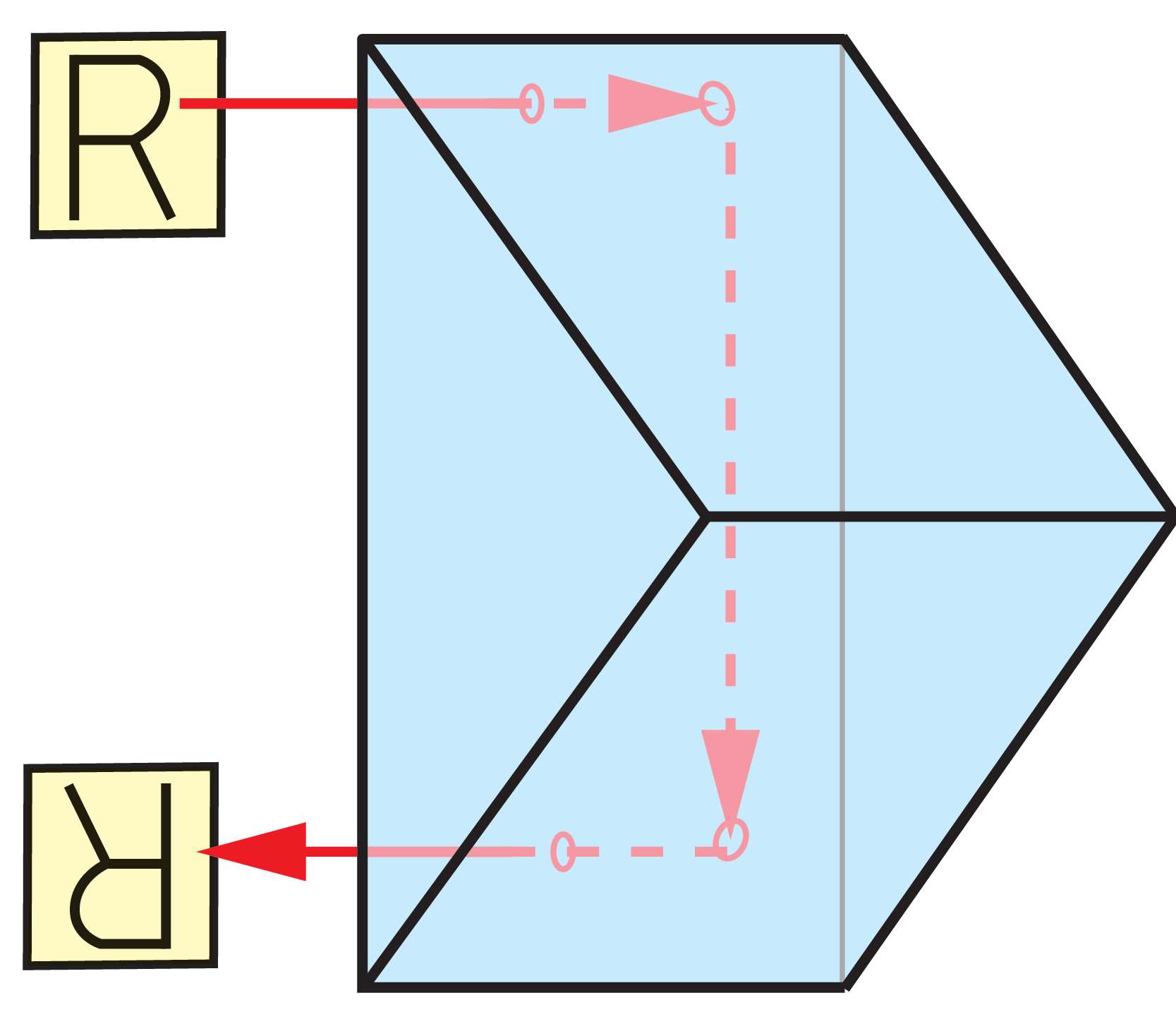

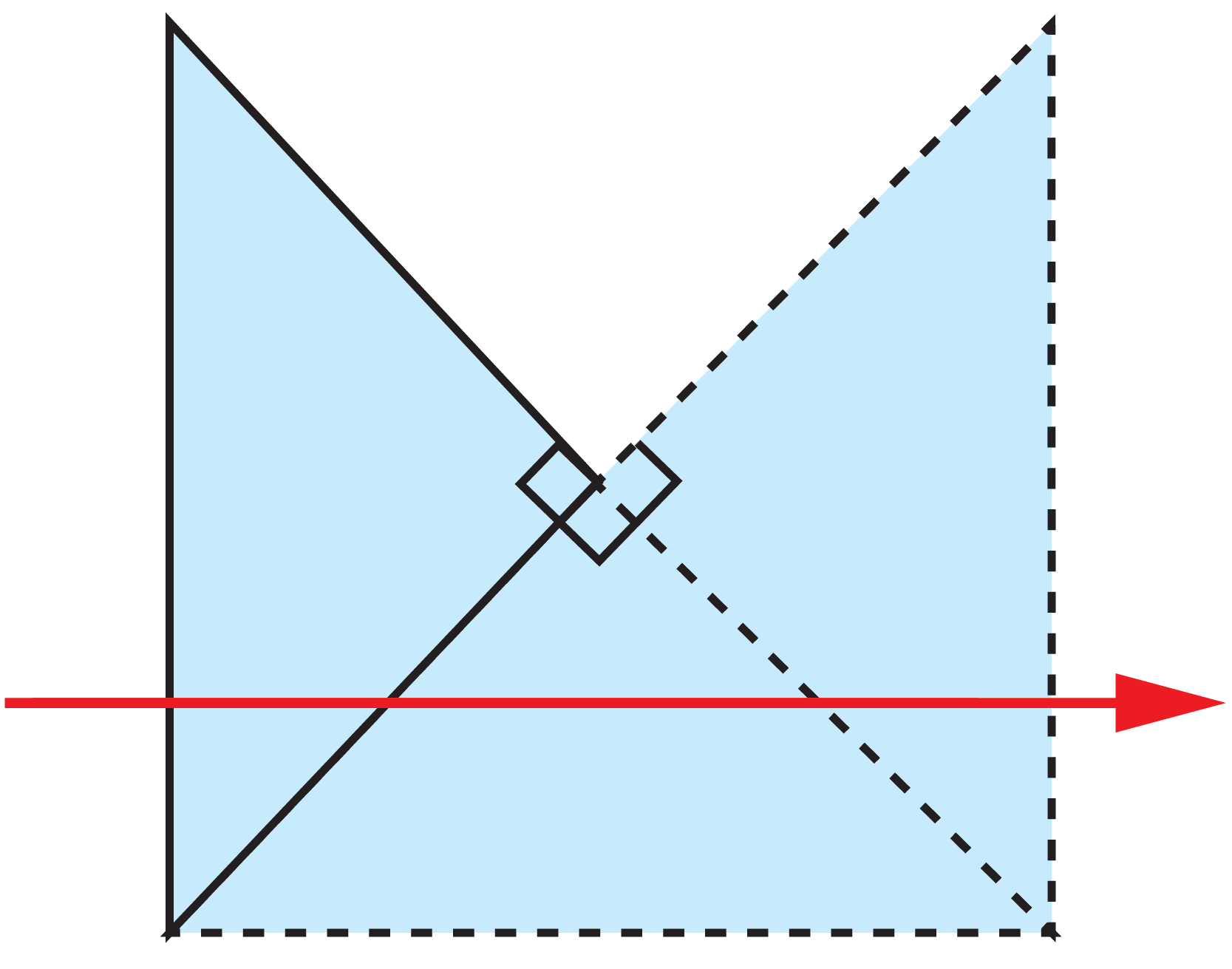

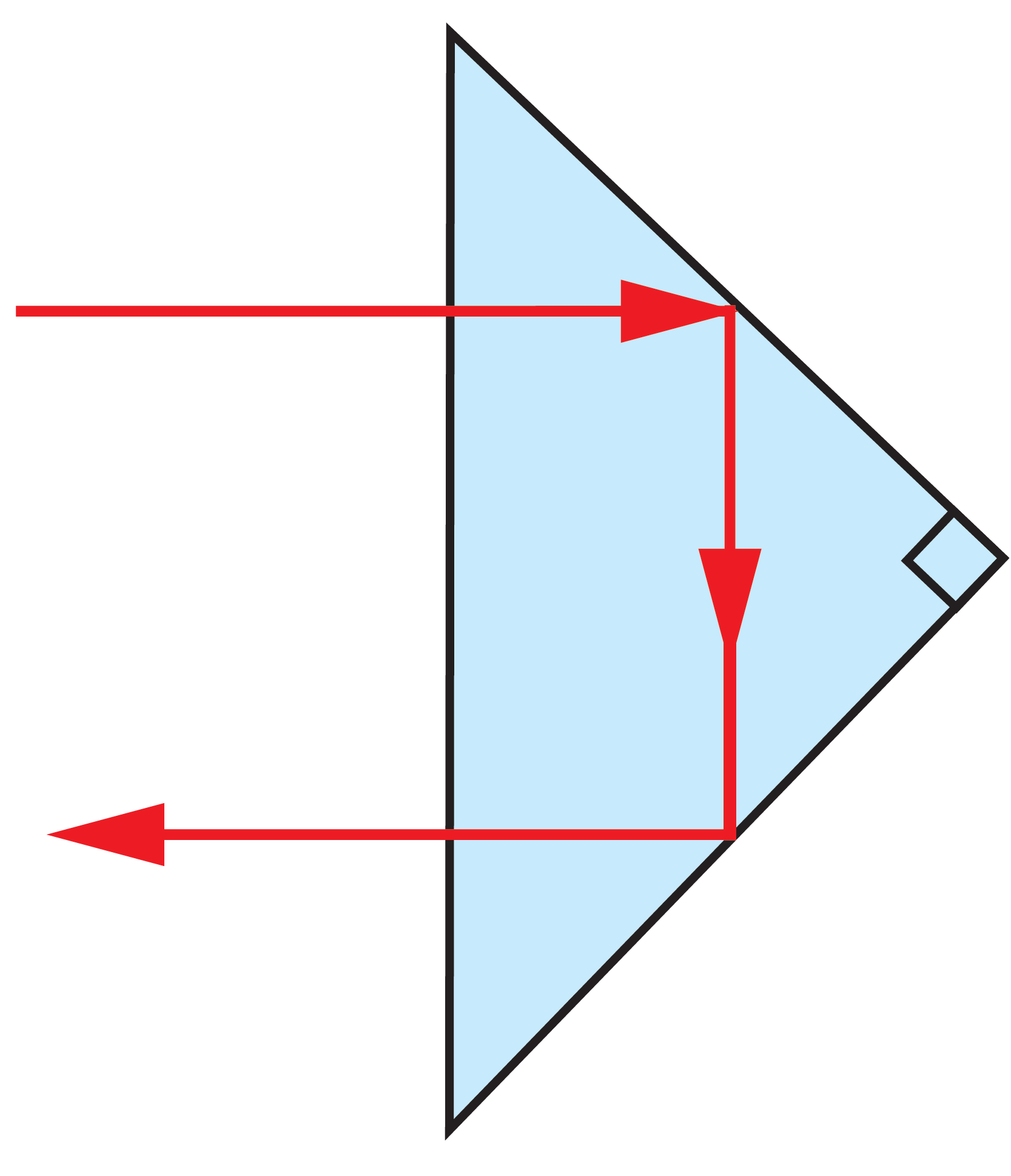

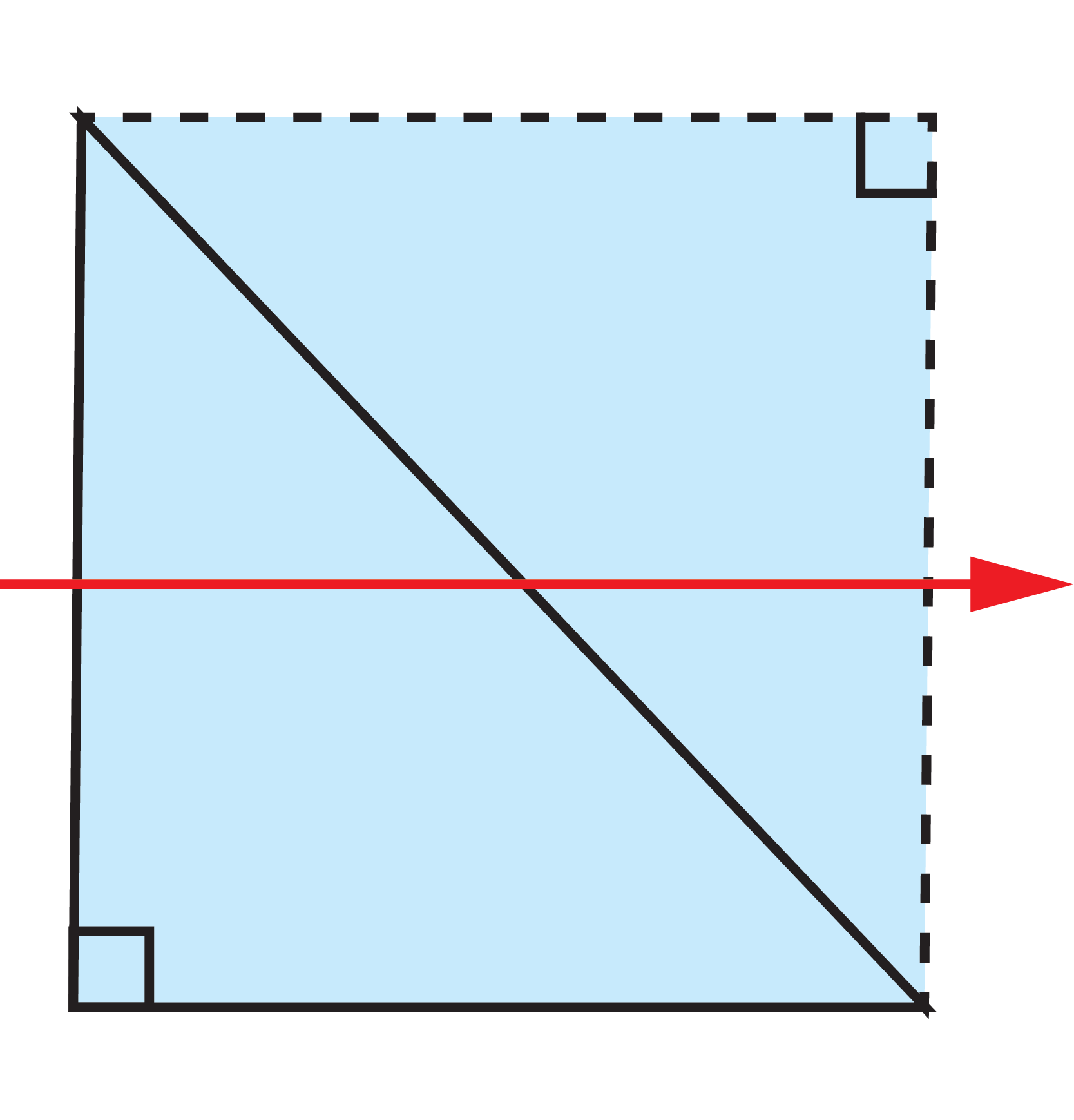

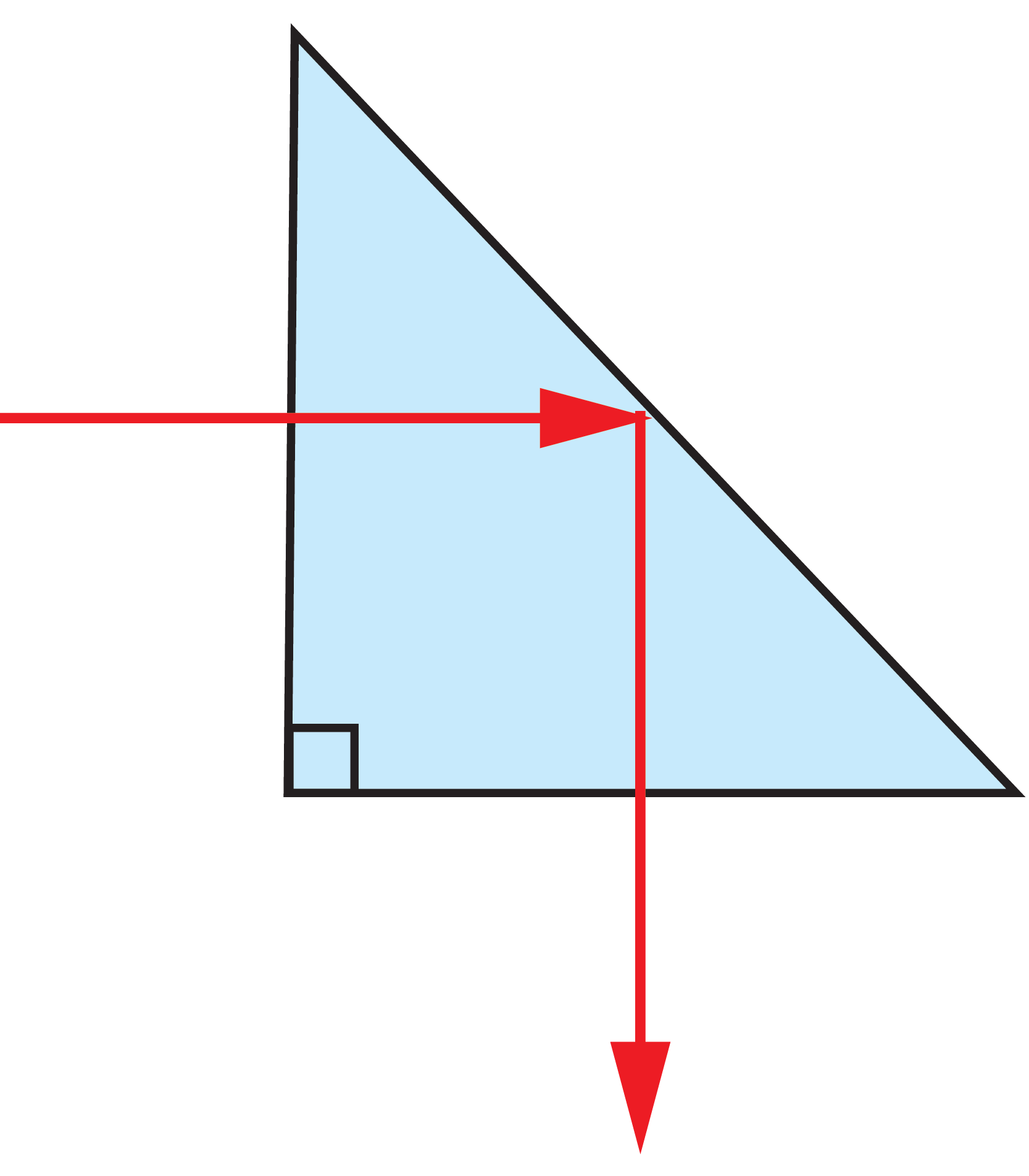

TECHSPEC® N-BK7 Right Angle Prisms are made from precision N-BK7 for use in a variety of visible light applications. Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left-handed image, and depending on the orientation of the prism, the image may be inverted or reverted. TECHSPEC® N-BK7 Right Angle Prisms can also be used in combination for image/beam displacement. These right-angle prisms are additionally offered with aluminized and AR Coated surfaces.
