Olympus LCPLN20XIR 20X NIR Objective

Volume Pricing
Qty 1+	NT$236,950 each
Need More?	Request Quote

概況

Model Number:

LCPLN20XIR

Compatible Tube Lens Focal Length (mm):

Focal Length: 180mm

Type:

Microscope Objective

Style:

Infinity Corrected

Manufacturer:

Olympus

物理和機械特性

Field of View (mm):

1.10

Length excluding Threads (mm):

36.62

Maximum Diameter (mm):

31.00

Weight (g):

149

光學特性

Compatible Cover Glass Thickness (mm):

Glass: 0 - 1.2mm
Silicon: 0 - 1.2mm

Focal Length FL (mm):

9.00

Magnification:

20X

Numerical Aperture NA:

0.45

Resolving Power (μm):

0.75

Depth of Field (μm):

1.36

Working Distance (mm):

Glass: 8.38 - 7.63mm
Silicon: 8.38 - 7.07mm

Wavelength Range (nm):

400 - 1600

Field Number (mm):

22

Parfocal Length (mm):

45

Immersion Liquid:

N/A

Entrance Pupil Diameter (mm):

8.10

螺紋和安裝

Mounting Threads:

RMS / 20.32mm x 36 TPI

Olympus LCPLN20XIR 20X NIR Objective

Specifications

概況

物理和機械特性

光學特性

螺紋和安裝

Regulatory Compliance

產品概覽

Technical Information

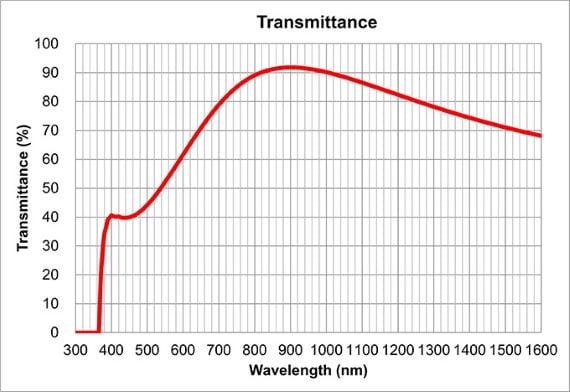

LCPLN20XIR Transmission Graph
