50mm Dia. Ge, IR Holographic Wire Grid Polarizer

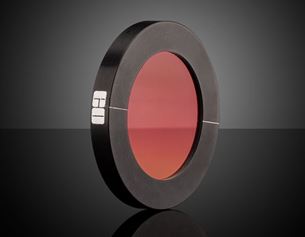

50mm Dia. Ge, IR Holographic Wire Grid Polarizer, #62-777

50mm Dia. Ge, IR Holographic Wire Grid Polarizer, #62-777

Stock #62-777
NT$70,200
×
Qty 1-5
NT$70,200
Qty 6
NT$53,964
Volume Pricing
Request a Quote
Mount:
Black Anodized Aluminum
Operating Temperature (°C):
-20 to 75
Substrate:
Germanium (Ge)
Thickness (mm):
2.00
Clear Aperture CA (mm):
34.0
Diameter (mm):
50.00
Extinction Ratio:
300:1 @ 10.6µm
Construction:
Wire Grid
Wavelength Range (nm):
8000 - 17000
Transmission (%):
>50
Dimensional Tolerance (mm):
±0.2
Polarization:
Notches on polarizer ring are aligned with wires of wire grid
Surface Flatness:
λ/20 @ 10.6 μm
Angle of Incidence (°):
0
Damage Threshold, CW:
50 W/cm2
Groove Density (grooves/mm):
2700.00
Groove Parallelism to Edge (°):
N/A
Mount Thickness (mm):
6.0
Type:
Linear Polarizer
Parallelism (arcmin):
≤3
Ring Thickness (mm):
±0.1
Note:
Notches on polarizer ring are aligned with wires of wire grid (max. reflection)

Regulatory Compliance

RoHS:

產品系列說明

  • 專為2 -30μm的波長範圍而設計
  • 提供多種基材的全像偏光片供選擇
  • 直紋偏光片非常適用於高功率雷射
  • 360° Rotation Using Metric Polarizer Mounts

紅外線(IR)金屬線柵偏光片用於對非偏振紅外雷射光源發出的光執行偏振,以及減弱偏振紅外雷射光源發出的光。若搭配使用兩個金屬線柵偏光片,可取得超過40,000:1的高消光比。在每個偏光片的保護環表面上刻有兩道白線,以標記該偏光片的偏振軸。我們提供直紋組態與全像組態。

注意:處理KRS-5與硒化鋅時應特別小心,因為這兩者是有毒材料。請始終戴上橡膠或塑膠手套,以避免汙染危險。

Infrared (IR) Wire Grid Polarizers are manufactured by a special holographic technique that creates sub-micron wire grid spacing. Compared to conventional ruled wire grid methods, the holographic method creates finer groove spacing which optimizes short wavelength performance. We offer holographic wire grid polarizers of Barium Fluoride (BaF2), Zinc Selenide (ZnSe), Thallium Bromoiodide (KRS-5), and Germanium (Ge).

Note: Special care should be taken when handling KRS-5 and Zinc Selenide as they are toxic materials. Always wear rubber or plastic gloves to avoid risk of contamination.
