0.08X - 4X Standard, Multi-Function Calibration Target

×
Stock #58-403 5-7 Days
×
- +
NT$73,850
Qty 1-4
NT$73,850
Qty 5+
NT$70,175
Volume Pricing
Request Quote
下載產品資料
Coating:
Evaporated Chrome
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Float Glass
Magnification:
0.08X - 4X
Dimensions (mm):
Plate: 154 x 100
Surface Quality:
40-20
Thickness (mm):
1.50
Dimensional Tolerance (mm):
±1.0
Parallelism (mm):
0.05
Surface Flatness (P-V):
1λ/inch
Contents of Kit:
Foam Lined Case
Angled Support Base
Target on Clear Glass
Opaquing cards
Quick Reference Card

Regulatory Compliance

RoHS 2015:
Reach 209:
Certificate of Conformance:

產品系列說明

  • 可在0.08至4倍範圍內對系統進行校準
  • 可量測調制轉換函數、景深、分辨率、視場與畸變
  • 包括N.I.S.T.準確度憑證

此多功能校準測試板專為計算放大倍率介於0.08至4之間的系統而設計,可以一次測試視覺系統的許多參數,因此使用一個測試板即可取得更多有用資訊。可以量測採用許多分辨率時的景深,從而實現對每個特定應用都有用的量測。可以量測具有5 lp/mm至80 lp/mm頻率的系統調制轉換函數。測試板包含具有鉻沉積的兩個有框玻璃平板。第二個平板具有圓形與網格圖案,用於量測平面與傾斜平面畸變。圖案經過精心設計,可利用整個視場,不必在量測不同參數時移動測試板,並具有很高的準確度。提供的測試板包括詳細規格與合規憑證。#58-770套件組在測試板上包括乳白鉻與標準鉻。

技術資訊


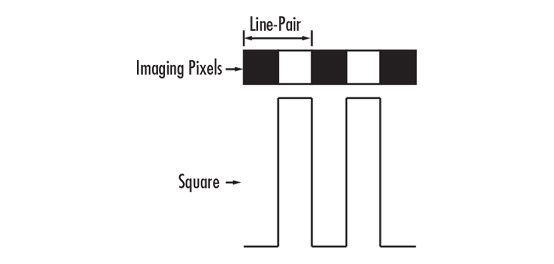

Tested Parameter Pattern Size Pattern Description
Resolution/MTF 154 x 100mm 11 cycles of 5 to 40 to 5 lp/mm
Resolution/MTF 21.8 x 28mm 50 lp/mm
Resolution/MTF 21.8 x 26mm 60 lp/mm
Resolution/MTF 21.9 x 24mm 70 lp/mm
Low Mag DOF 100 x 154mm 80 lp/mm
FOV/DOF 154mm Linear Scale, 0-154mm, 0.25mm pitch
Distortion 80 x 80mm 5, 10, 15, 20, 30, 40, 50, 60, 70, 80, & 90mm Diameter Circles
Distortion 80 x 80mm 1, 2 & 4mm Pitch
Blooming 115 x 20mm Positive and Negative Circles & Squares
